BMW F34 320i GT Electric Water Pump | 3 Series N20 Turbo Cooling Spares

Description

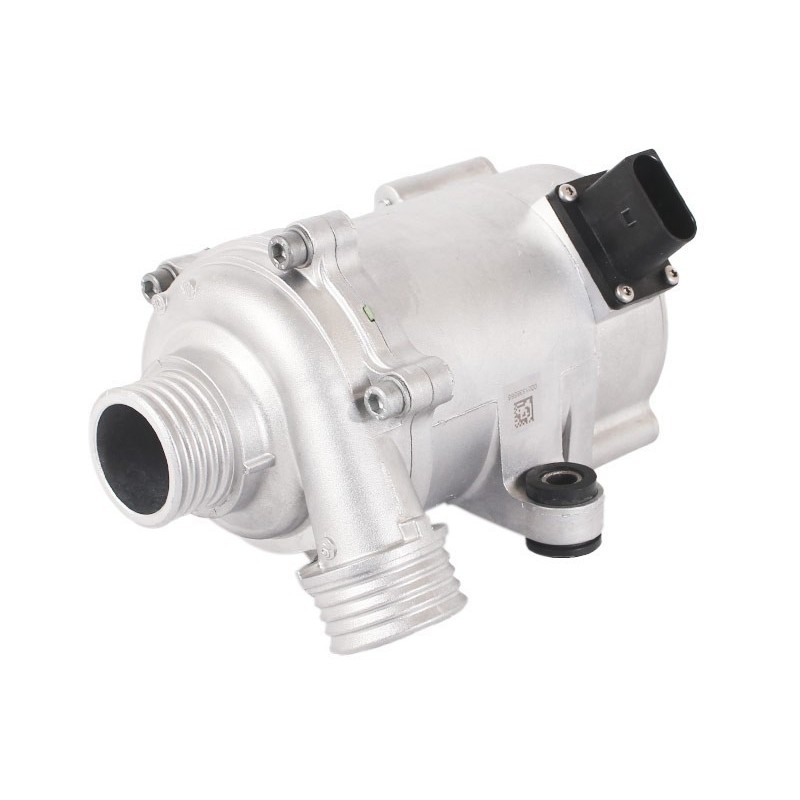

Maintain precise engine thermal regulation, eliminate dangerous coolant stagnation, and safeguard your high-boost powerplant from catastrophic overheating with this premium BMW F34 320i Gran Turismo Electric Water Pump Assembly (Main Engine Coolant Auxiliary Pump Core). Specifically sourced and electronically verified for the unique F34 3 Series GT platform paired with the N20 2.0-liter twin-scroll turbocharged petrol engine (produced from 2013 through to 2019), this genuine factory-style aluminum-housed cooling pump is the definitive replacement for units suffering from internal microprocessor burnout, broken impeller blades, or lazy flow-rate adaptations.

Please take note of a highly advanced powertrain engineering layout: the N20 engine does not use a traditional, belt-driven mechanical water pump. Instead, it relies entirely on this high-output 12V intelligent electric water pump. This module operates completely independently of engine RPM, allowing your engine control unit ($DME$) to alter coolant flow dynamically based on real-time driving loads, ambient temperatures, and air conditioning demands. Additionally, it runs after you shut off the car to cool down the hot turbocharger bearings, preventing oil coking. Sourcing this dedicated, workshop-verified N20 electric pump ensures that your high-amperage 4-pin electrical socket, thick coolant hose inlet/outlet necks, and rubber-isolated mounting bracket array interface with absolute factory accuracy.

The electric water pump operates in an unforgiving environment, coping with immense cooling system pressures and intense engine bay heat. Over thousands of kilometers, the internal electronic circuit board integrated into the pump’s aluminum end-cap can experience thermal breakdown or solder fatigue. When this happens, the pump will communicate erratically over the BSD (Bit Serial Data) bus line, triggering hidden trouble codes long before it fails entirely.

As the failure progresses, the pump will struggle to spin or lock up entirely, causing the coolant to stop moving. This triggers an immediate yellow “Engine Overheating – Drive Moderately” message on your iDrive screen, which rapidly turns into a flashing red warning. Ignoring this alert for even a few minutes can result in severe cylinder head warppage, cracked plastic coolant flanges, or blown head gaskets. Swapping out a lazy or dead pump with this workshop-verified factory component instantly restores powerful, high-volume coolant circulation, allows your N20 engine to run at its optimum thermodynamic efficiency, and protects your turbocharger from thermal stress.

Manufactured with a high-durability cast aluminum casing, low-friction internal composite impeller wheels, and premium copper-wound electric motors, this unit is built to withstand high cooling pressures and local driving conditions. Trust TP German Auto Spares for fully verified, workshop-inspected BMW cooling components, electric water pumps, mechanical thermostats, radiators, expansion tanks, and engine spares that preserve the premium build quality and driving safety of your 3 Series GT.

Technical & Installation Note: This product is supplied complete with its integrated electronic control module housing and aluminum body structure. Because the N20 engine cooling architecture relies heavily on aluminum-to-aluminum fastening points, your technician must install a brand-new set of single-use aluminum mounting bolts to prevent galvanic corrosion and loosening from engine vibrations. Furthermore, post-installation, a specialized manual bleed procedure must be initiated using the accelerator pedal sequence to clear all air pockets from the cooling system before starting the engine.

Key Features:

• Vehicle & Engine Compatibility: Tailor-fit exclusively for BMW 3 Series 320i GT variants (F34 Gran Turismo platform) running the 2.0L N20 turbo petrol engine produced from 2012 through to 2019.

• Intelligent BSD Bus Communication: Built to interface seamlessly with original BMW $DME$ diagnostic network protocols for real-time speed reporting and automated fault logging.

• Workshop Bench Tested: Put through rigorous flow-rate and pressure testing to ensure the internal brushless electric motor runs smoothly under simulated operating conditions.

• Flawless 4-Pin Electrical Socket: The high-current electrical connection block is thoroughly checked under magnification to ensure zero signs of coolant wicking, pins corrosion, or brittle plastic lips.

• Un-Cracked Composite Hose Necks: The high-pressure inlet and outlet plastic-aluminum composite pipe junctions are verified completely smooth and free of structural stress fractures.

• Condition: Premium low-mileage used or refurbished factory unit; thoroughly case-cleaned, internally flushed of old coolant residue, and completely ready for installation.
