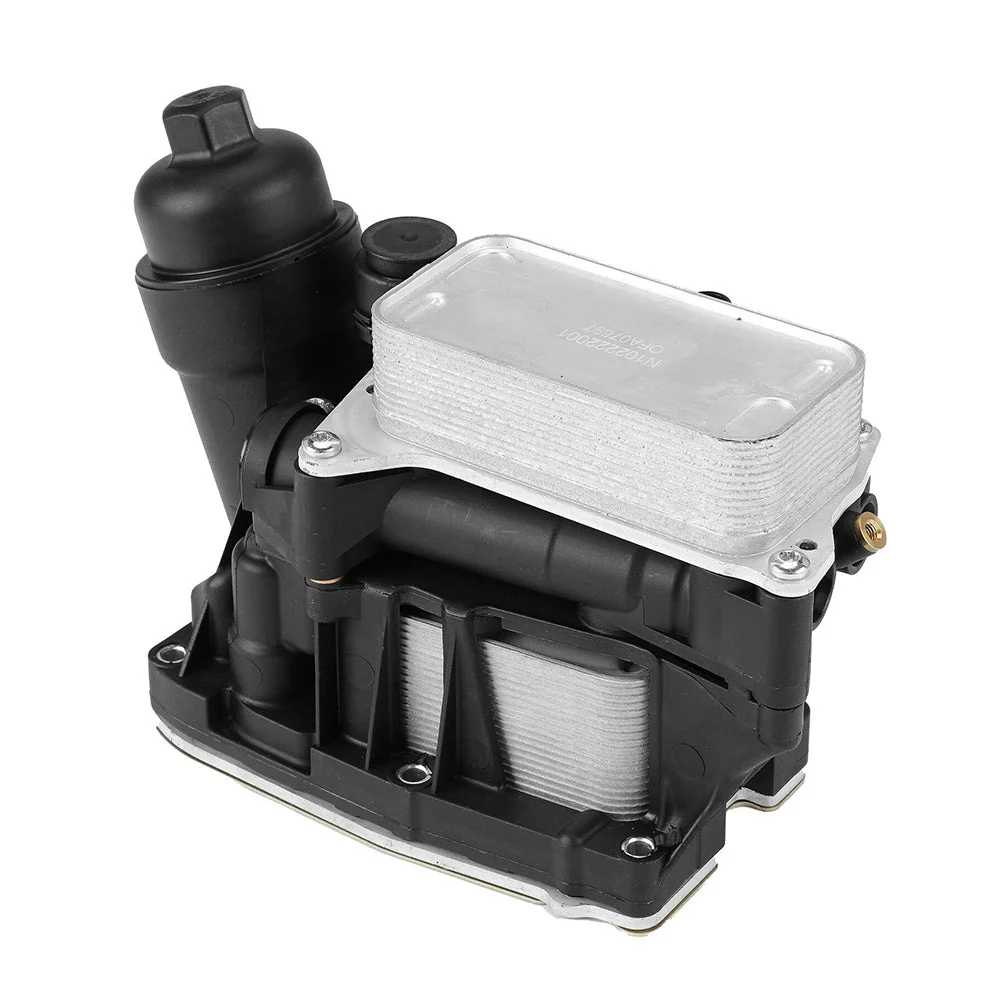

BMW N47 Diesel (2007-2017) Oil Filter Housing & Cooler | Genuine OEM Unit

Description

If your BMW N47 2.0L diesel engine is experiencing external oil leaks down the side of the cylinder block, or worse, internal coolant contamination (where oil mixes with your coolant to form a thick, brown sludge), a failing oil filter housing or integrated oil cooler is the prime suspect. We supply workshop-vetted, original BMW oil filter housings complete with the factory heat exchanger (oil cooler) for the N47 diesel engine platform.

These original assemblies ensure proper internal oil gallery routing and coolant circulation, preventing the warping and gasket blowouts commonly seen with cheap aftermarket alternatives.

• Factory-Spec Cooling: Maintains precise engine oil temperatures by utilizing engine coolant to cool hot oil during highway driving, protecting vital turbo and bearing components.

• Prevent Fluid Contamination: Replaces warped aluminum housings or degraded internal seals that cause oil and coolant to cross-contaminate.

• Condition: Premium workshop-vetted original component; inspected for clean internal fluid passages, pressure-tested core integrity, and flat mating surfaces.

Critical Considerations for N47 Filter Housing Replacement:

• Gasket & O-Ring Renewal: Even though our assemblies are thoroughly inspected, never reuse old seals. Always install a brand-new genuine BMW gasket kit between the housing and the engine block, as well as new seals for the cooler core.

• Coolant Flush is Mandatory: If your old housing failed internally and allowed oil into your cooling system, you must thoroughly flush your cooling system with a dedicated cooling system cleaner multiple times. Residual oil will rapidly destroy your rubber radiator hoses and coolant expansion tank.

• Early vs. Late N47 Variations: BMW made minor revisions to the coolant nipple orientations and sensor ports across the N47 production lifecycle (from early E-series applications like the E90 to later F-series like the F30 320d). Providing your VIN is mandatory to ensure the coolant hose connections match your exact chassis layout.

zaz

Workshop Pro-Tip: Be careful with the plastic cap torque! When you do future oil changes on the N47, always torque the plastic oil filter cap to the specified 25 Nm (marked on the cap). Overtightening it cracks the top collar of the filter housing or twists the internal standpipe, which will immediately trigger low oil pressure warnings and severe internal leaks!

Key Features:

• Model-Specific: Precision-engineered for the N47D20 2.0L diesel engine architecture.

• Durable Construction: High-grade cast aluminum housing designed to handle high engine bay thermal stress.

• Quality Assured: Vetted for structural flatness, thread integrity, and pressure-tested cooler performance.
