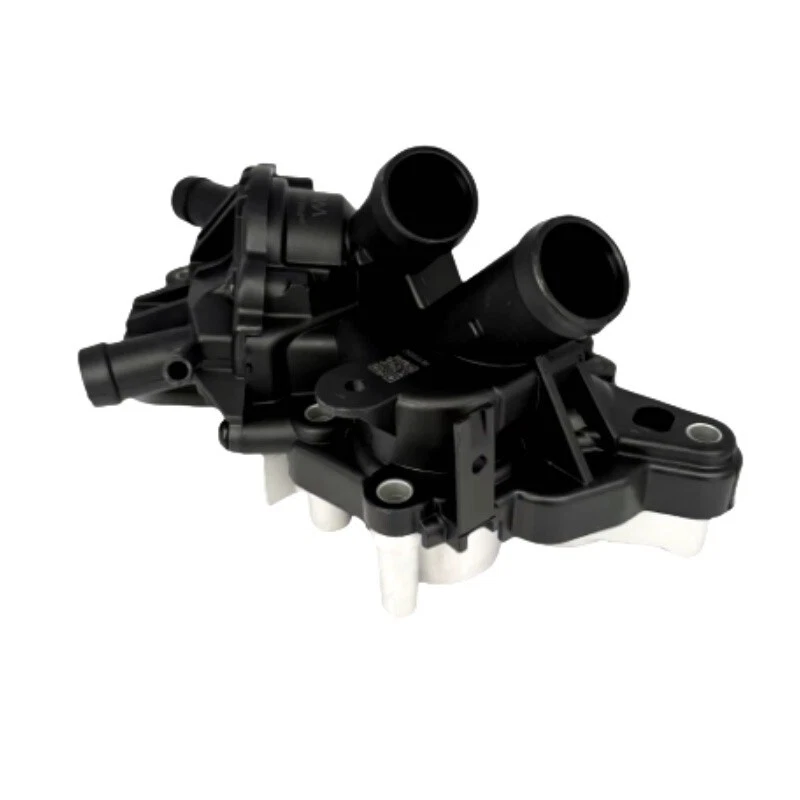

VW / Audi 1.4 TSI (CZC) Water Pump & Housing Assembly | OEM Cooling Repair

Description

Restore the precise thermal management of your 1.4 TSI engine with this premium original Water Pump and Housing Assembly specifically designed for the EA211 1.4 TSI (CZC engine series). Unlike older designs, the 1.4 TSI water pump is a sophisticated, dual-stage component integrated into a composite housing that often includes the thermostat and temperature control electronics. This is the definitive repair solution for units suffering from internal seal failure, housing warping, or integrated thermostat seizure.

Please note the critical design aspect of the CZC platform: The 1.4 TSI EA211 water pump is a complex, module-based assembly.

• Dual-Circuit Cooling: The housing includes integrated valves that manage the split-cooling circuit—separating the block and head temperatures to reach operating temperature faster and reduce emissions. Sourcing this genuine assembly ensures the internal valves trigger correctly, preventing “Check Engine” lights or persistent under-heating/overheating issues common with generic, non-electronic aftermarket pumps.

• Plug-and-Play Integration: Because the housing contains the coolant output ports and thermostat, replacing the pump as a complete unit eliminates the risk of leaks at the mating surfaces between the pump and the thermostat housing.

The 1.4 TSI (CZC) water pump housing is prone to “heat-cycling fatigue.” Over time, the composite plastic housing can develop micro-cracks at the hose connection points, or the internal electronic thermostat can seize, leading to erratic coolant temperatures. If your vehicle is struggling to maintain temperature or shows a “Coolant System Malfunction” message, the internal actuator in this housing is likely the cause.

Signs your 1.4 TSI water pump/housing requires replacement:

• Persistent Coolant Smell/Loss: Small drips of coolant (pink/white residue) appearing near the passenger side of the engine block, often leaking from the seam of the pump housing itself.

• Temperature Gauge Fluctuations: The engine takes a long time to warm up, or the temperature gauge drops while driving on the highway—a clear sign of a stuck-open thermostat within the housing.

• Coolant System Malfunction Warning: A dashboard warning light triggered by the failure of the pump’s integrated electronic control valve.

• Engine Overheating: If the internal mechanical pump impeller fails, the engine will overheat rapidly under load.

Technical Workshop Removal & Vacuum Fill Warning: This component is an integrated module. When replacing, the cooling system must be drained completely. We strongly recommend using a vacuum-filling tool for the refilling process. The EA211 cooling circuit is notorious for trapping air; if air pockets remain, the new water pump will cavitate, leading to immediate impeller damage and engine overheating. Always replace the O-rings on the coolant pipes that connect to the housing, as these are often flattened and will leak if reused.

Key Features:

• Integrated Design: Includes the water pump, thermostat, and actuator housing as one factory-verified module for reliable fitment.

• Electronic Compatibility: Fully compatible with the CZC engine’s CAN-bus thermal management system for perfect temperature control.

• Factory-Spec Material: High-grade composite housing designed to withstand the thermal expansion cycles of the 1.4 TSI engine.

• Condition: Brand new or workshop-vetted original component; tested for seal integrity and valve actuator responsiveness.
