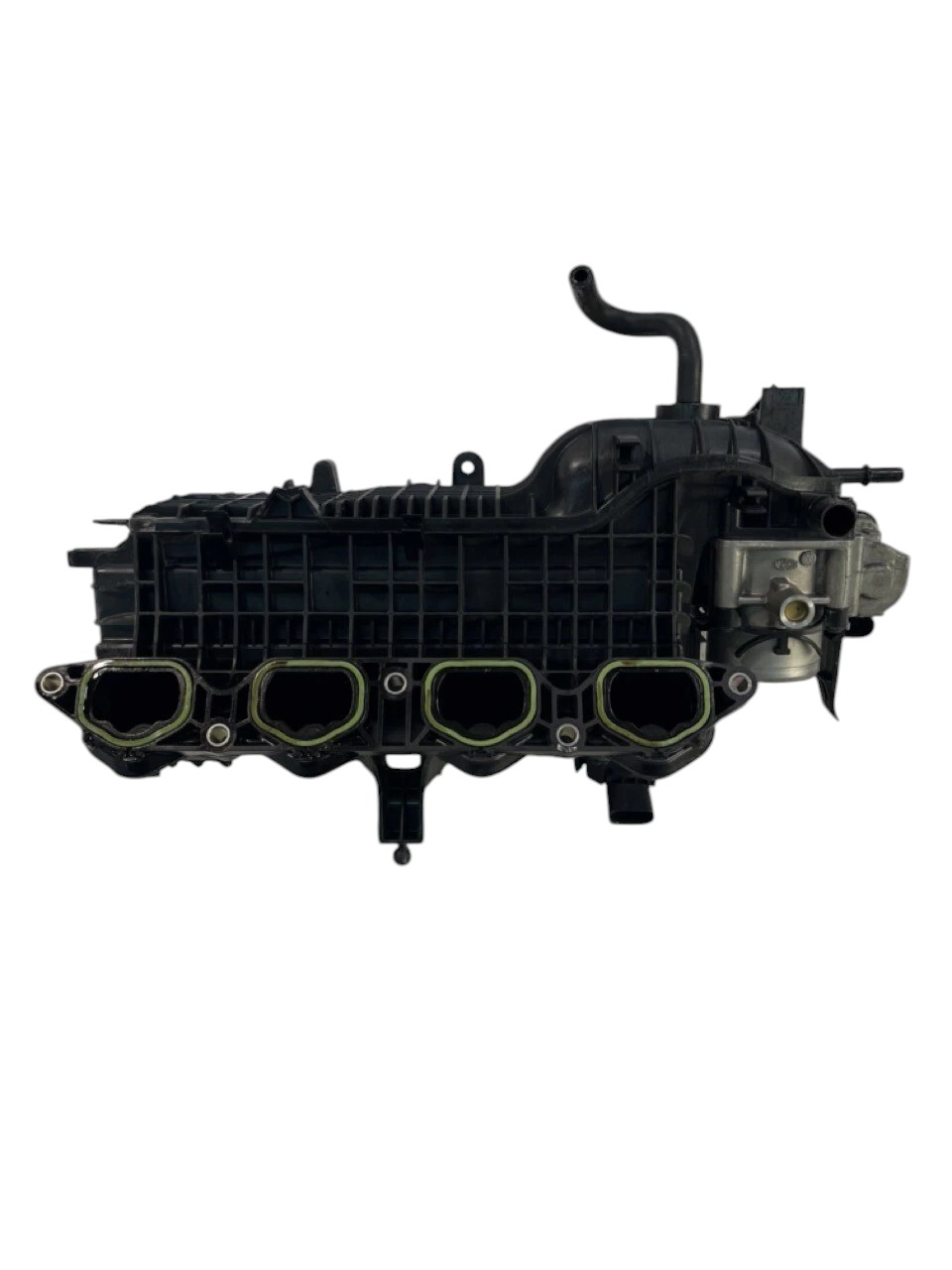

VW / Audi 1.4 TSI (CZD) Air Intake Manifold | OEM EA211 Intake Repair

Description

Restore the efficiency and crisp throttle response of your 1.4 TSI (CZD) engine with this premium original Air Intake Manifold Assembly. Engineered specifically for the EA211 engine platform, this manifold is the heart of your engine’s air intake system. It is the definitive replacement for units suffering from structural cracks in the composite material, failure of the internal variable intake runner flaps (tumble flaps), or persistent vacuum leaks that lead to rough idling and “lean” engine fault codes.

Please note the critical integrated technology of the CZD manifold: This is not just a hollow pipe; it is a complex air-distribution module.

• Integrated Charge Air Cooling: On the 1.4 TSI, the intake manifold often houses the charge air cooler (intercooler) core. Sourcing this workshop-vetted original ensures that the internal seals between the air intake and the cooling circuit are perfect, preventing coolant from being ingested into the engine.

• Variable Tumble Flaps: The manifold utilizes electronically controlled flaps to optimize airflow for low-end torque and high-end power. Replacing a manifold with a faulty actuator or worn-out flap bushings is essential to regain the smooth power delivery your TSI engine was designed for.

As the intake manifold is constructed from heat-resistant composite plastic, it is subjected to constant heat-soaking from the turbocharger and high-pressure cycles from the intake air charge. Over time, the plastic can become brittle, leading to hairline cracks that cause “unmetered air” to enter the engine. This confuses the ECU, resulting in poor fuel economy, hesitations during acceleration, and inevitable “Check Engine” lights.

Signs your CZD intake manifold requires replacement:

• Rough Idle & Misfires: A shaky idle or random misfire codes that won’t go away, often caused by small vacuum leaks at the manifold gaskets or cracks in the housing.

• “System Too Lean” Fault Codes: P0171 or P0174 codes are classic indicators that your engine is pulling in extra air through a crack in the manifold.

• Performance Loss: A sluggish feel when you step on the gas, often indicating that the variable intake flaps are stuck in the wrong position.

• Whistling Noise: A high-pitched whistling or “hissing” sound while the engine is running, pointing to a vacuum leak at the manifold base or injector seals.

Technical Workshop Removal & Gasket Warning: Replacing the manifold on the 1.4 TSI is a detailed procedure that requires removing the high-pressure fuel lines and, in some cases, the fuel injectors. It is mandatory to install a brand-new set of intake manifold gaskets. Never reuse the old gaskets, as they flatten over time and will not provide a proper seal on the new manifold, leading to immediate vacuum leaks. Additionally, ensure all electrical connectors for the manifold flap motor and MAP sensor are clicked in firmly and that no debris falls into the cylinder head intake ports during the swap.

Key Features:

• Precision Engineering: Designed to match the exact airflow dynamics and sensor mounting locations for the 1.4 TSI (CZD) engine.

• Structural Integrity: Original composite material resists heat-soak and pressure spikes far better than cheaper aftermarket plastic alternatives.

• Integrated Flap System: Includes the factory-calibrated tumble flap actuator mounts for perfect integration with your engine’s ECU.

• Condition: Premium workshop-vetted original component; pressure-tested for airtight integrity and verified for smooth flap actuator operation.
