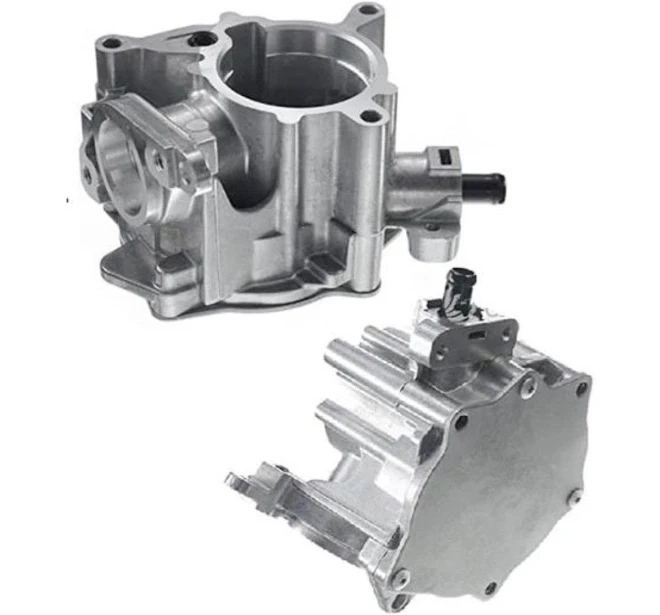

VW Golf 6 GTI 2.0 TSI CCZ Brake Vacuum Pump | Mechanical Vacuum Spares

Description

Restore crisp, effortless braking response, eliminate dangerous vacuum pressure drops, and seal up persistent engine oil leaks with this premium VW Golf 6 GTI Mechanical Brake Vacuum Pump Assembly. Specifically sourced, pressure-tested, and workshop-verified for the iconic Golf MK6 GTI platform running the 2.0-liter CCZ / CCZB EA888 Gen 2 turbocharged petrol engine (produced from 2009 through to 2013), this genuine factory-style mechanical pump is the definitive replacement for vacuum systems suffering from internal valve failure, worn drive tangs, or degraded rear casing seals.

Please keep a critical engine design framework in mind: Because turbocharged engines like the 2.0 TSI CCZ do not generate sufficient, consistent intake manifold vacuum to operate a brake booster, VW utilizes this dedicated mechanical vacuum pump driven directly by the camshaft. Mounted to the rear right-hand side of the cylinder head, the pump’s internal rotor is spun constantly by a slotted connection at the end of the exhaust camshaft. It pulls a continuous, deep vacuum, routing it through a check valve directly to your brake booster servo to provide immediate power assistance every time you press the brake pedal. Sourcing this dedicated, workshop-verified factory module ensures your camshaft drive tang dimensions, vacuum line barb orientation, and internal oil lubrication ports align with absolute factory millimetric accuracy.

The brake vacuum pump operates under immense structural stress and high thermal loads, constantly handling pressurized engine oil supplied from the cylinder head to lubricate its internal sliding vanes. Over thousands of kilometers of driving, the primary failure points are the internal rubber seals and the main mating gasket against the engine block. When these seals fail, engine oil begins to seep out, dripping directly onto the hot DSG or manual gearbox bellhousing below. This causes a distinct, foul burning oil smell in the cabin and can eventually degrade surrounding coolant hoses and electrical wiring harnesses.

Worse yet, if the internal check valve or mechanical vanes wear out, the pump will fail to maintain sufficient vacuum pressure. The symptoms of a failing vacuum pump are immediate and highly hazardous: you will experience a progressively stiff, rock-hard brake pedal that requires massive physical leg effort to slow the car down—especially noticeable during rapid or successive braking maneuvers. A loss of vacuum also triggers engine performance issues, as it can starve auxiliary vacuum-operated components like the turbocharger wastegate actuator or intake manifold flap system, throwing your GTI into “EPC” limp mode with underboost fault codes. Swapping out a weak or weeping assembly with this workshop-tested factory unit permanently eliminates dangerous oil leaks, restores maximum power braking assistance, and ensures your vacuum-driven engine controls function perfectly.

Manufactured from high-purity die-cast aluminum housings and precision-ground internal components designed to withstand aggressive engine oil shearing, this assembly arrives thoroughly flushed, bench-tested for suction efficiency, and port-capped. Trust TP German Auto Spares for fully verified, workshop-inspected VW braking components, brake boosters, master cylinders, ABS modules, tandem pumps, and mechanical spares that preserve the true high-performance safety standards of your Golf 6 GTI.

Technical Installation & Safety Note: This product is supplied as a fully functional mechanical vacuum pump assembly. To ensure a permanent, leak-free installation, your technician must replace the main rubber sealing ring between the pump housing and the cylinder head during fitment. Before bolting the fresh pump down, the camshaft drive slot must be rotated to match the alignment of the pump’s inner drive tang precisely—forcing the pump down with mismatched alignment will instantly snap the exhaust camshaft end or crack the pump housing.

Key Features:

• Engine Specific Engineering: Tailor-fit exclusively for Volkswagen Golf MK6 GTI models running the 2.0 TSI CCZ / CCZB engine code from 2009 to 2013.

• Camshaft-Driven Rotary Design: Built to operate in perfect mechanical harmony with the exhaust camshaft, providing a constant reservoir of deep vacuum for power-assisted braking.

• Flawless Camshaft Drive Tang: The rear mechanical coupling tab is carefully inspected under magnification to guarantee zero stress fractures, rounded edges, or groove wear.

• Strict Vacuum Pressure Bench Test: Every refurbished or used unit is put through structural suction testing to guarantee it pulls and holds stable vacuum metrics across simulated engine RPM ranges.

• Condition: Premium low-mileage used or refurbished original factory unit; chemically de-scaled of exterior oil sludge, internally flushed, and completely ready for vehicle safety restoration.
