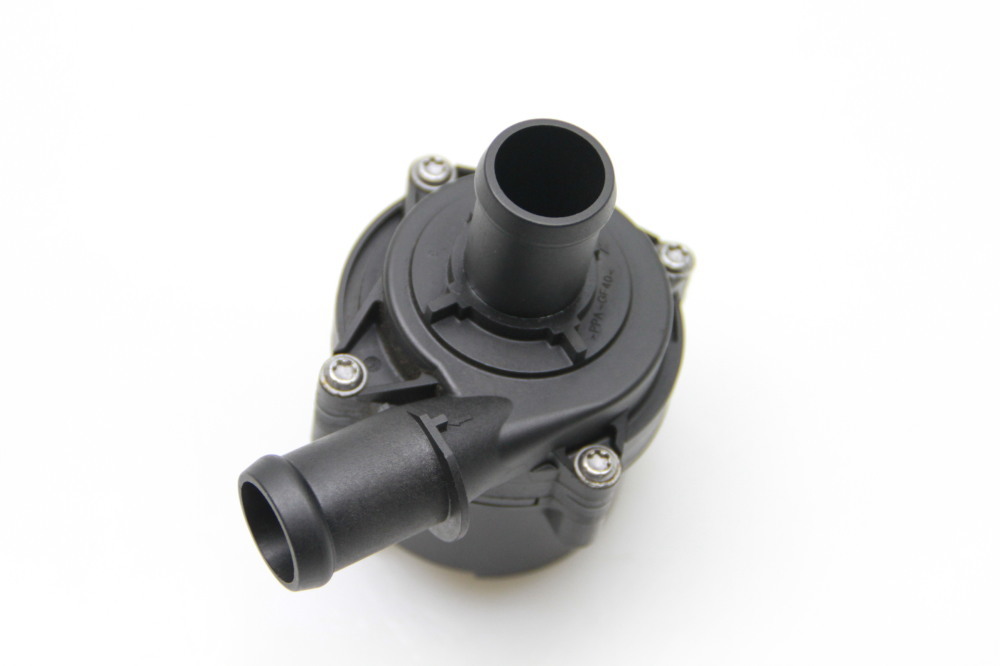

VW Passat B8 Engine Water Pump Assembly | 2017 – 2019 Coolant Pump Spares

Description

Protect your luxury sedan from catastrophic thermal damage, maintain optimal engine operating temperatures, and secure your vehicle’s cooling circuit circulation with this premium VW Passat B8 Engine Water Pump Assembly. Specifically sourced, pressure-tested, and workshop-inspected for the eighth-generation (B8 platform / Typ 3G) Volkswagen Passat produced from 2017 through to 2019, this genuine factory-style mechanical cooling unit is the definitive replacement for cooling networks dealing with weeping shaft seals, worn internal bearings, or failing internal switchable shrouds.

Please keep a highly critical mechanical layout and engine specification framework in mind when diagnostic troubleshooting: The Passat B8 generation utilizes highly sophisticated, engine-specific water pump designs tailored to individual engine families.

• 1.4 TSI Petrol Models (EA211 family): Utilize a distinct dual-loop cooling module layout where the mechanical water pump is driven by a small dedicated belt off the intake camshaft at the rear of the engine block, rather than the main serpentine accessory drive belt.

• 2.0 TSI Petrol Models (EA888 family): Feature a highly complex complete thermostat housing assembly with an integrated water pump mechanism driven by a small balance shaft belt underneath the intake manifold.

• 2.0 TDI Diesel Models (EA288 family): Utilize a traditional front-facing timing belt-driven water pump that features an advanced, electronically controlled switchable shroud (solenoid collar) designed to cover the impeller for ultra-fast cabin warm-up metrics during cold starts.

Sourcing this dedicated, workshop-verified factory component ensures that your internal impeller vanes, integrated pulley tracking teeth, electronic sensor sockets, and perimeter sealing tracks align with absolute factory millimetric accuracy.

Operating continuously from the second your engine fires up puts the water pump under immense hydraulic, thermal, and mechanical stress. Over thousands of kilometers of highway driving and city idling, the internal bearing seals face progressive degradation from suspended micro-particles inside the coolant fluid. As the internal shaft seals fail, pressurized engine coolant will begin to weep through the designated pump drainage hole. If ignored, the fluid loss will wash away the internal bearing grease, causing the metal ball bearings to dry out, warp, and create a loose wobble across the pump pulley axle.

A failing or leaking water pump will immediately threaten the health of your engine. The degradation typically flags itself through a distinctive, low-pitched whining, rumbling, or squealing noise coming from the engine bay that increases in pitch along with engine revs ($RPM$). Concurrently, you will notice a progressive “phantom” drop in your coolant expansion tank fluid levels, accompanied by a strong, sweet smell of hot antifreeze rising from beneath the bonnet after a trip. If the electronic switchable shroud mechanism on the TDI models seizes in the closed position, it will block coolant circulation entirely—causing your dashboard temperature gauge to shoot past 90°C into the red safety zone within minutes of driving, risking a warped cylinder head, blown head gasket, or total engine seizure. Swapping out your worn or binding unit with this workshop-tested factory assembly permanently eliminates noisy bearing chatter, stops active fluid leaks, and ensures a constant, high-volume flow of coolant through your radiator matrix.

Manufactured with high-strength die-cast aluminum or premium glass-reinforced composite housings and fitted with low-friction, high-durability internal bearings, this assembly arrives thoroughly flushed, checked for zero axle play, and ready for installation. Trust TP German Auto Spares for fully verified, workshop-inspected VW cooling components, thermostats, radiator assemblies, cooling water pipe connections, expansion tanks, and mechanical spares that preserve the true executive build quality and long-term reliability of your Passat B8.

Technical Fitting & Cooling System Flushing Note: This premium product is supplied as a clean structural water pump assembly with a verified true drive pulley and smooth impeller rotation. Because modern Volkswagen engines are extremely sensitive to thermal shock and chemical debris, your technician must perform a comprehensive flush of the entire cooling system to clear out any old rust scale or oxidized fluid particles before bolting down the replacement pump. Always fit a brand-new rubber sealing gasket and torque the mounting bolts strictly to factory torque specifications in a progressive criss-cross sequence to prevent warping the housing face. Once installed, refill the engine exclusively with original specification VW G12/G13/G12evo violet coolant mixed with distilled water, and execute the factory-mandated electronic vacuum bleeding procedure using a diagnostic scan tool to entirely purge trapped air pockets from the auxiliary circuit loops.

Key Features:

• Engine Bay Geometric Mapping: Tailored to fit seamlessly within the tight structural clearance profiles of the Volkswagen Passat B8 generation from 2017 to 2019.

• Zero Axle Play Bearings: Every single used or refurbished pump unit is bench-tested under mechanical tension to guarantee the drive shaft spins with 100% linear alignment and zero vertical or horizontal deflection.

• High-Volume Anti-Cavitation Impeller: The internal water wheel vanes are inspected under magnification to ensure zero plastic erosion, chipped blades, or mineral scaling deposits.

• Pristine Sensor & Solenoid Tracks: On models fitted with electronic flow control, the terminal plug connectors are scanned to guarantee zero corrosion, cracked housings, or circuit faults.

• Condition: Premium low-mileage used or refurbished original factory engine cooling component; thoroughly cleaned, bearing tracking pre-lubricated, mounting faces polished, and ready for immediate chassis reconstruction.
