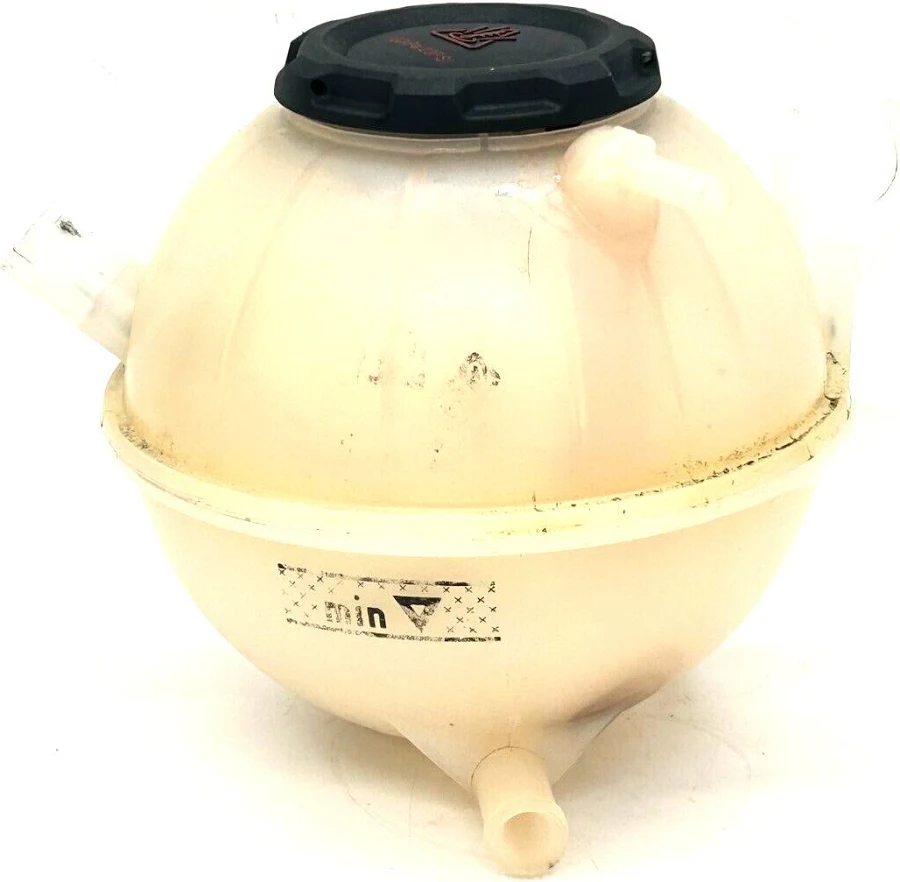

VW Passat B8 Radiator Expansion Tank | 2017 – 2020 Coolant Bottle Spares

Description

Maintain optimal pressure stabilization, protect your cooling circuit framework, and safeguard your cabin climate systems with this premium VW Passat B8 Radiator Coolant Expansion Tank (Header Overflow Reservoir Bottle). Specifically sourced, pressure-tested, and workshop-verified for the eighth-generation (B8 platform / Typ 3G) Volkswagen Passat produced from 2017 through to 2020, this genuine factory-style pressurized polymer reservoir is the definitive replacement for engine bays dealing with micro-fractured plastic seams, weeping overflow ports, or degraded internal fluid level sensor pins.

Please keep a highly critical cooling system architectural design note in mind when evaluating your original tank: Many factory Volkswagen expansion tanks from this production era are equipped with an internal desiccant pack, visually identified by the warning label “Mit Silikat” (With Silicate) stamped directly onto the outer plastic face. This built-in silica bag was originally engineered to slowly dissolve anti-corrosive minerals into the engine’s G13 coolant loop over time to protect aluminum components. However, over years of extreme engine bay heat-soak, the delicate mesh seams of this internal bag frequently split open—releasing thousands of tiny, gritty silica beads directly into your pressurized cooling lines. Sourcing a pristine, workshop-inspected original reservoir ensures that your internal mesh structures are fully stable (or upgraded to a non-silicate design), preventing severe downstream blockages while maintaining millimetric alignment with your factory structural mounting pegs and quick-release hose configurations.

Operating as the primary expansion reservoir for a highly pressurized closed-loop cooling network means this bottle is subjected to severe conditions. The tank handles a continuous fluctuation of pressurized coolant cycling between ambient outdoor temperatures and intense operational spikes exceeding 90°C. Over thousands of kilometers of highway driving and city idling, this intense thermal expansion and contraction causes the composite plastic to lose its elasticity, oxidize, and turn brittle. The deterioration typically manifests as microscopic hairline fracture webs running along the molded center-weld seam or small stress fractures structural columns underneath the base where hot fluid continuously enters via the small return lines.

A compromised or failing expansion tank will rapidly threaten your engine’s safety and ruin your cabin comfort. The issue usually flags itself through a persistent, sweet chemical odor drifting from under the hood after driving, accompanied by an intermittent or flashing low-coolant warning light on your dashboard instrument cluster. This indicator can trigger either because fluid is actively weeping out of a crack, or because the internal dual-prong level sensor pins have become heavily oxidized by old scaling deposits, breaking the electrical resistance circuit back to the car’s Body Control Module. More destructively, if your vehicle suffers from a split internal “Mit Silikat” bag, the circulating crystals will travel directly down into the narrow, ultra-thin passages of your cabin heater matrix (heater core). This results in a sudden, frustrating loss of hot air from your passenger dashboard vents, even when the engine is running completely up to temperature. Swapping out a stained, leaking, or compromised header bottle with this workshop-tested factory unit re-secures system pressure integrity, guarantees clean sensor metrics, and shields your primary heating loops from debris contamination.

Manufactured with high-durability, semi-translucent reinforced polyamide resins that allow for instant visual fluid level inspections, this reservoir arrives thoroughly flushed of all old residues, structural port-inspected, and sensor-continuity verified. Trust TP German Auto Spares for fully verified, workshop-inspected VW cooling components, water pumps, radiator assemblies, bypass flanges, thermostat housings, and mechanical spares that preserve the true executive reliability and long-term safety of your Passat B8.

Technical Fitting & Cooling Circuit Isolation Note: This premium product is supplied as a complete radiator expansion tank featuring its integrated lower dual-pin level sensor socket (retaining twist cap sold separately or transferable from your original unit). Because the cooling system operates under extreme pressure and dangerous thermal conditions, you must never attempt to loosen the reservoir cap or disconnect any cooling hoses while the engine is hot to the touch. Before installing the replacement tank, look closely inside your old bottle; if you notice the internal silica bag has ruptured and left dark or gritty crystalline scaling behind, your technician MUST perform a comprehensive chemical back-flush of the engine block, radiator, and heater matrix before fitting the new tank. Always refill the system exclusively with a fresh mixture of original specification VW G12evo or G12/G13 violet antifreeze and distilled water, ensuring the system is vacuum-bled to clear trapped airlocks.

Key Features:

• MQB Engine Bay Architecture: Profiled exclusively to snap into the factory dual-lug chassis brackets of the Volkswagen Passat B8 platform from 2017 to 2020.

• Integrity Bench Pressure Tested: The composite polymer body and threaded cap neck are subjected to simulated pressure loads to guarantee zero weeping under extreme operating stresses.

• Pristine Dual-Pin Sensor Contacts: The lower electrical connector terminal pins are inspected to ensure they are free from green corrosion or fluid bypass tracking for a clean dashboard circuit link.

• Clear Fluid Level Alignment Markings: Molded with high-contrast MAX and MIN indexing lines on the outer casing to facilitate fast, effortless weekly garage maintenance checks.

• Condition: Premium low-mileage used or refurbished original factory engine component; thoroughly de-scaled, ports verified clear of structural stress whitening, and ready for immediate cooling loop restoration.
