VW Polo 8 / 9 1.0 TSI (DXT) Complete Lockset | 2017 – 2025 Ignition & ECU Module Spares

Description

Get your hatchback back on the road, bypass complicated dealership recoding loops, and completely fix your engine management security system with this premium original VW Polo 8 / 9 1.0 TSI (DXT Engine) Complete Lockset. Pulled directly from running, clean-title donor vehicles, this factory-matched digital security bundle is engineered explicitly for the modern 1.0-liter turbocharged 3-cylinder platform utilizing the specialized DXT engine architecture. Covering the MQB-A0 platform spanning 2017 through to 2025 models, this kit serves as the definitive plug-and-play solution for repair shops and vehicle owners facing corrupted electronic control modules, un-programmable keys, or extensive dashboard component data corruption.

Please keep a crucial electronic security detail in mind when looking into your diagnostic options: Modern Volkswagen vehicles utilize a highly restrictive security ecosystem known as Component Protection.

• The Component Ecosystem (This Kit): VW models integrate the Engine Control Unit (ECU), the instrument cluster clock face (dashboard speedometer assembly), the central body control module (BCM), and the physical transponder chip inside the key into a single locked security loop.

• The Lockset Advantage: If you try to swap out just a broken ECU on its own, the car’s security system will instantly flag an unauthorized module, trigger “SAFE” mode on your dash, and refuse to let the engine run for more than a second. This complete lockset includes all the core digitally married elements in one matched package. Because they are already programmed to recognize each other’s security codes, installing the full set bypasses the need for high-end online diagnostic programming.

Sitting in the main cabin and front firewall section makes your lockset electronics vulnerable to moisture damage, sudden voltage surges, and progressive internal soldering cracks. Over several years of daily use, jump-starting a vehicle incorrectly or running it with a failing, low-voltage battery can spike the vehicle’s electrical circuits, corrupting the sensitive EEPROM storage memory inside the engine management chip. Furthermore, because the central body control modules are frequently positioned near underlying floor panels or lower trim cavities, any unnoticed window seal or cabin water leak can quickly flood the module pins, causing short-circuits and permanent chip failure.

A corrupted, unlinked, or dead lockset assembly will instantly lock down your vehicle’s engine and electrical functions. This issue typically displays itself through an engine that turns over for one second and dies immediately, a dashboard screen displaying the “Immobilizer Active” or “SAFE” message, or an ignition barrel that physically jams up and prevents the key blade from twisting. It can also present as a total communication loss when connecting a diagnostic scan tool to the OBD2 port, making it impossible for your mechanic to read engine fault data or code new keys. Swapping out the failed units with this pre-matched factory system completely clears out any underlying data corruption, restores clean CAN-bus data lines, and provides an immediate, reliable start every time you twist the key.

Manufactured with high-precision micro-circuitry and heavy-duty mechanical tumblers designed to handle hundreds of thousands of engine start cycles, each unit in this kit is thoroughly scanned on a dedicated bench simulator, cleared of old crash data markers, and connection-verified. Trust TP German Auto Spares for fully verified, workshop-inspected Volkswagen electronic modules, locksets, wire harnesses, starter motors, and mechanical spares that preserve your car’s true factory safety standards and anti-theft integrity.

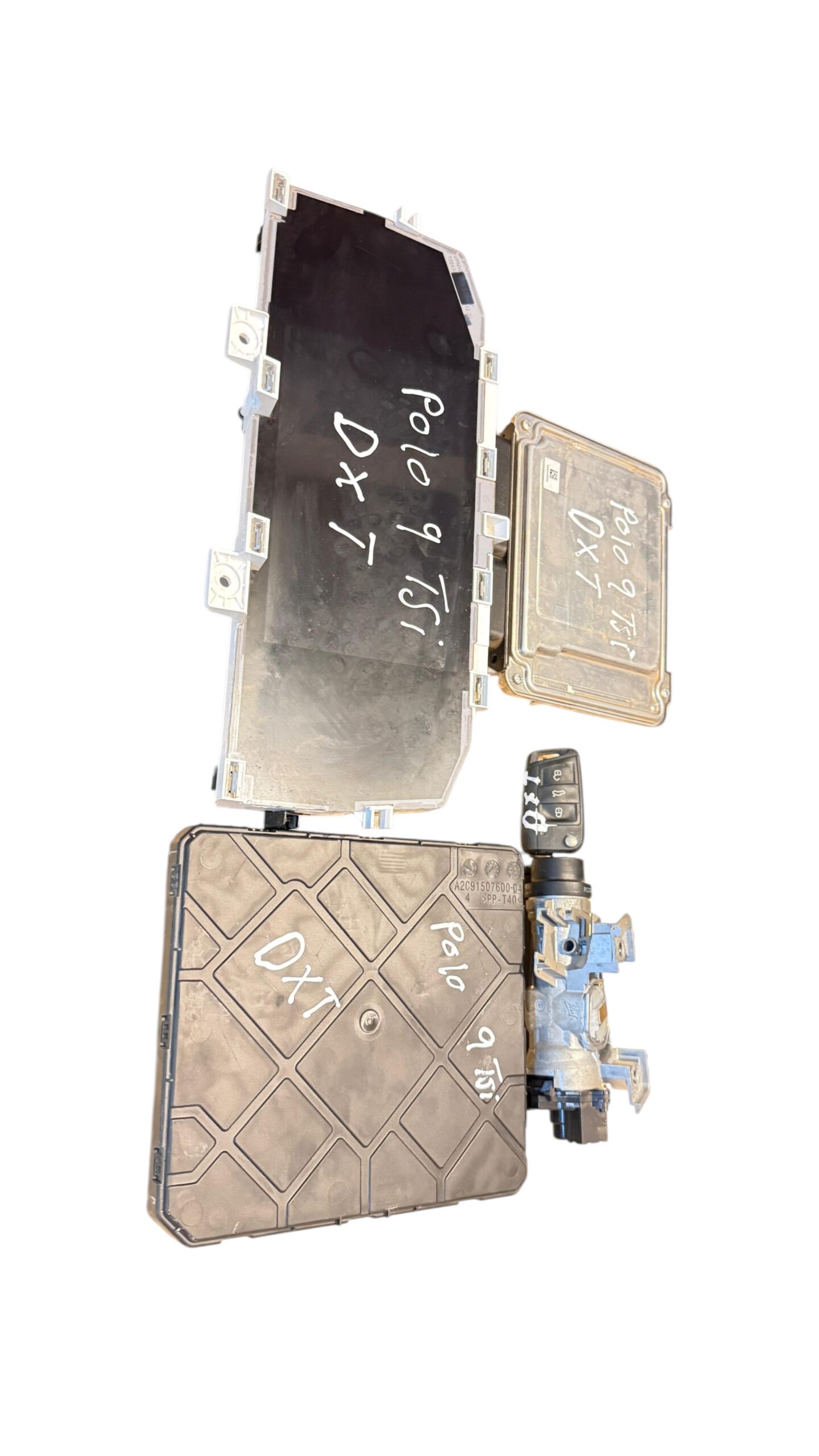

Technical Workshop Electrical Installation & Testing Step: This premium product is supplied as a complete matching electrical security set (includes the matching Bosch DXT Engine ECU, internal Body Control Module, Electronic Ignition barrel/receiver, and matching transponder key). To ensure a successful installation and avoid short-circuiting the fresh electronic components, your technician must fully disconnect the vehicle’s 12V battery terminal before unplugging any module. Once all matching pieces are bolted in and securely plugged into their factory harnesses, reconnect the battery, turn the key to the ‘On’ position for 30 seconds to allow the CAN-bus network to register the new layout, and check that all dashboard lights clear naturally before cranking the starter.

Key Features:

• DXT Engine Specific Mapping: Specially calibrated and flash-programmed to run the 1.0 TSI three-cylinder engine line running under the DXT engine designation (2017–2025).

• Complete Security Loop Alignment: Includes the ECU, BCM, and key transponder chip—all digitally linked and matched from the exact same donor vehicle.

• Un-Corrupted Module EEPROM Data: Fully verified via diagnostic bench testing to ensure all vin-code records and immobilizer storage blocks are completely clean.

• Smooth Key Tumbler Rotation: The mechanical ignition lock cylinder is smooth, free from internal catch points, and matches the included factory flip-key profile perfectly.

• Condition: Premium low-mileage used or refurbished original factory security assembly; pins are perfectly straight, casings are free from water corrosion, and the set is ready for immediate drop-in replacement.
