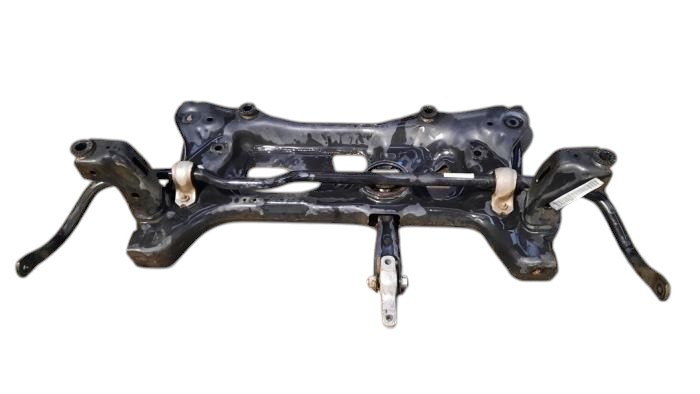

VW Tiguan R-Line Front Subframe | Genuine OEM Engine Cradle Axle Carrier

Description

Restore your SUV’s precise steering geometry, eliminate unresolvable tracking issues, and secure your powertrain firmly to the chassis with this premium original VW Tiguan R-Line Front Subframe Assembly. Sourced directly from insurance-approved, low-mileage donor vehicles and checked meticulously on specialized alignment jigs, this genuine Volkswagen structural engine cradle (also known as an axle carrier or cross-member) serves as the definitive mechanical replacement for flagship R-Line models suffering from heavy pothole damage, kerb strikes, or front-end collision impacts.

Please note a highly critical structural engineering and chassis framework rule when ordering heavy-duty structural parts: The Volkswagen Tiguan utilizes completely distinct subframe designs and material weights depending on the vehicle generation and production year, and units do not interchange across platforms.

• First-Generation Tiguan R-Line (2010–2016, 5N Platform / PQ35): Utilizes a multi-piece configuration engineered to house the Generation-3 parallel electric steering rack and structural steel lower control arms.

• Second-Generation Tiguan R-Line (2016–2023, AD Platform / MQB Matrix): Built upon a highly advanced, ultra-high-strength steel or weight-optimized aluminum sheet matrix. This premium structural cradle features specific hard-point mounts tuned to handle the stiffer dampening rates, lower anti-roll bars, and high-torque demands of R-Line specified drivetrains (such as the 2.0 TSI or 2.0 TDI 4Motion pairs).

Sourcing this genuine workshop-inspected original Volkswagen component ensures that your steering rack mounting sleeves, lower control arm pivot channels, front anti-roll bar bracket tracks, and rear engine pendulum mount (dogbone bone) anchor holes align with absolute factory millimetric accuracy right out of the box.

As the core foundation of your vehicle’s entire front-end setup, the subframe acts as a massive structural bridge connecting your suspension arms, steering box, engine mounts, and stabilizer bars directly to the unibody frame. Because it rides low to the tarmac, a high-speed pothole impact, severe off-road obstacle scrape, or front wheel impact can easily bend or twist the heavy metal ears. Even a subtle 2mm structural deflection across the subframe body introduces major tracking imbalances.

A bent or cracked lower subframe compromises tracking safety and causes severe mechanical wear. The defect typically announces itself through a steering wheel that remains permanently crooked even after multiple wheel alignments, a noticeable pull or drift to one side on the highway, uneven front tyre scrubbing, or a heavy structural clunk felt through the floorboards during acceleration or braking. Attempting to straighten a deformed subframe with a hydraulic press or heating torch is incredibly dangerous; it ruins the tempered strength of the steel or aluminum, risking a structural failure at highway speeds. Swapping out the compromised unit with this workshop-vetted factory original ensures your front suspension geometry is restored to factory specifications, locks in your wheel alignment parameters, and secures your engine positioning.

Every subframe assembly we salvage undergoes a strict mechanical quality check: the main frame is checked on layout jigs to guarantee zero twisting, all threaded internal mounting sleeves are tested with factory bolt threads to ensure zero stripping, and all weld seams are verified free of stress fractures or hairline cracks. Trust TP German Auto Spares for fully verified, workshop-inspected Volkswagen structural components, steering racks, lower track arms, front hubs, struts, and mechanical spares that preserve the premium executive handling and factory safety cells of your Tiguan R-Line.

Technical Workshop Installation & High-Tensile Stretch Bolt Note: This premium structural product is supplied as a bare, structural-line verified front subframe core (the steering rack, lower control arms, stabilizer bars, and rubber engine mounts are sold separately or are fully transferable from your original assembly). Replacing a subframe is a major mechanical procedure; your technician must use an engine support crane to hold the engine and transmission from above while dropping the suspension cradle from below. Because the subframe anchors directly to the main unibody chassis, every single subframe mounting bolt must be replaced with brand-new factory high-tensile stretch bolts (Yield Bolts) and torqued to exact manufacturer specifications plus specified angle turns. Reusing old, stretched bolts can cause the subframe to shift slightly under heavy braking, resulting in persistent steering groans and alignment drift. A mandatory 4-wheel laser tracking alignment must be performed post-installation.

Key Features:

• Platform Specific Structural Matrix: Engineered precisely to align with the exact floorpan mounting anchors of your specific Tiguan generation (5N PQ35 or AD MQB).

• High-Rigidity Casting Lines: Built to maintain rigorous camber, caster, and toe control when subjected to aggressive R-Line performance suspension loads.

• Unmarred Threaded Mounting Sleeves: All internal bolt threads for the steering rack, control arms, and stabilizer brackets are verified clean and unstripped.

• Flawless Rust-Free Finish: Thoroughly inspected to guarantee zero structural rust pitting, underside impact gouges, or sheet distortion.

• Condition: Premium used original factory structural chassis component; thoroughly degreased, jig-verified for straightness, and completely ready for bolt-in chassis restoration.
