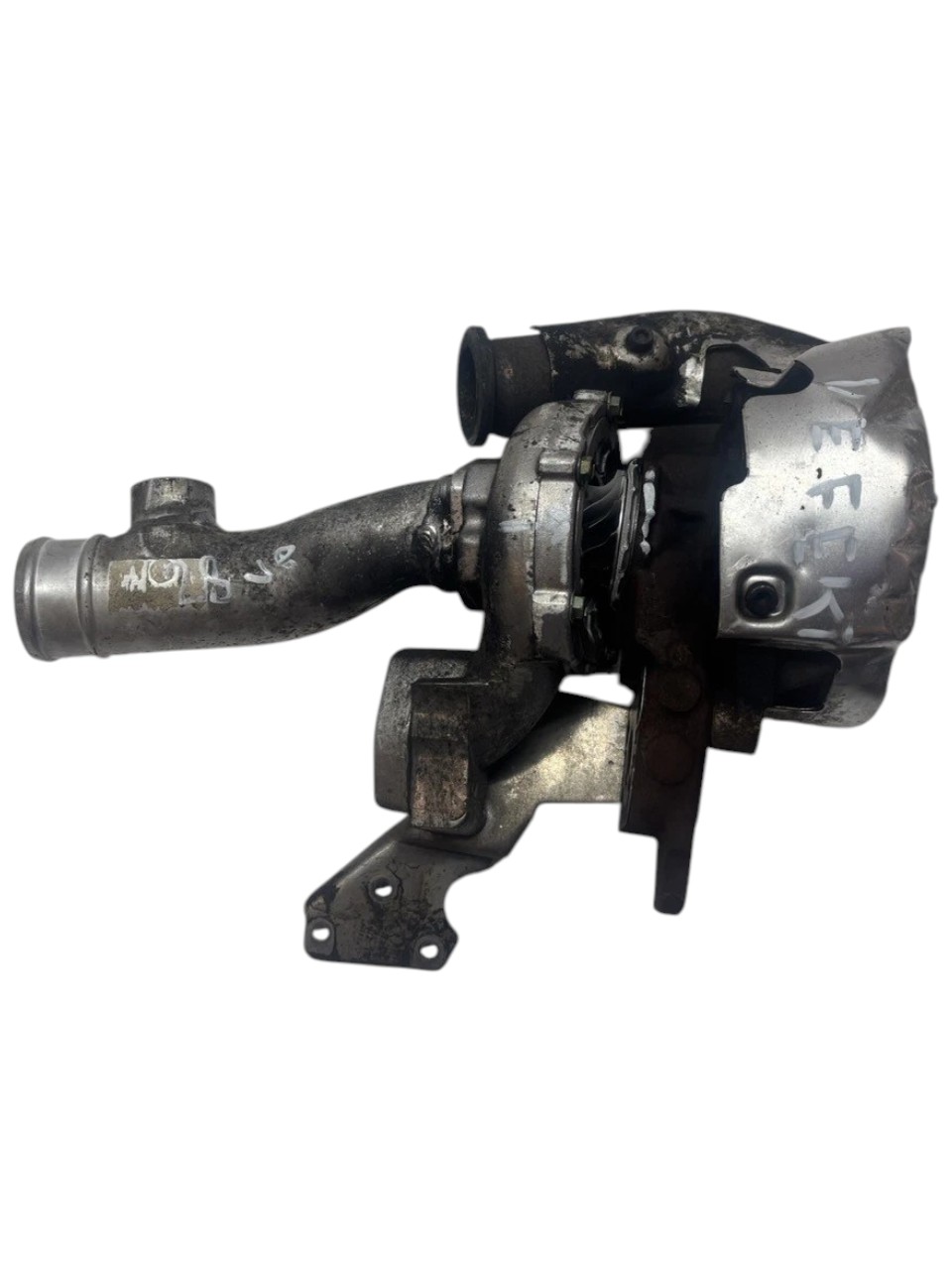

VW Touareg 7L 5.0 V10 TDI AYH Turbocharger | Genuine Garrett OEM Replacement Spares

Description

Restore the legendary, train-pulling torque outputs of your flagship luxury SUV, eliminate sudden under-boost limp mode traps, and stop oil-smoke tailpipe emissions with this premium original VW Touareg 7L 5.0 V10 TDI Turbocharger. Hand-selected directly from low-mileage, insurance-approved donor vehicles and strictly bench-checked for minimal shaft play and electronic actuator responsiveness, this genuine factory original replacement is engineered to handle the massive thermal loading and high boost pressures of the legendary AYH engine code. It serves as the ultimate mechanical and electronic solution for vehicle owners or specialized performance mechanics resolving blown oil seals, chipped compressor wheels, or jammed variable-nozzle veins.

Please note a highly critical layout constraint and structural configuration rule when sourcing forced-induction components for this monumental powerplant: The 5.0 V10 TDI engine utilizes a Bi-Turbo configuration featuring two completely distinct, mirrored Garrett turbochargers (Left Hand Side vs. Right Hand Side) that are not physically interchangeable.

• The Mirrored Configuration: The Left Side (Bank 1 / Passenger Side in SA) and Right Side (Bank 2 / Driver Side in SA) turbos utilize opposite-facing exhaust scroll housings, inverted oil feed alignments, and unique vacuum or electronic actuator mounting profiles.

• AYH Engine Specification: This high-pressure variable-geometry turbocharger (VNT) interfaces natively with the early-generation AYH engine management setup (2002–2007), operating hand-in-hand with its dedicated, bank-specific electronic actuator module to regulate boost delivery across the rev range with millimetric accuracy.

Sourcing this genuine, workshop-vetted factory original ensures that the specialized downpipe flange bolt patterns, integrated oil supply lines, and electronic wiring plugs line up flawlessly.

Tucked tightly deep inside the engine bay directly against the cylinder blocks exposes the V10 turbochargers to intense, prolonged thermal soaking and high mechanical stresses. Over thousands of kilometers of highway tracking and heavy towing, neglecting strict engine oil quality or using extended oil drain intervals can take a devastating toll. The specialized oil pathways can develop carbon buildup, starving the internal ceramic or steel bearings of vital lubrication. This starvation leads to immediate shaft score lines, causing the compressor wheels to wobble at high RPM, destroying the internal oil seals, and sending clouds of thick, blue-white oil smoke straight out of your exhaust pipes.

A worn, binding, or leaking turbocharger compromises engine health and puts your vehicle into a permanent safety limp-mode. The failure typically alerts the driver through unmistakable symptoms: a dramatic loss of power accompanied by a glowing glowing glow-plug or “Check Engine” light, a loud police-siren whistling or screeching noise coming from the engine bay when accelerating, an unresolvable “Boost Pressure Regulation: Range Not Reached” diagnostic code, or heavy oil consumption. Ignoring a failing turbo is incredibly dangerous; if the shaft snaps completely, the engine can ingest metal wheel shards or swallow its own engine oil, triggering a catastrophic diesel runaway event. Swapping out a weak or smoking unit with our workshop-vetted factory original permanently cures boost drops, ensures crisp throttle response, and protects your motor’s internal structural integrity.

Every single Touareg V10 turbocharger we salvage undergoes an extensive validation protocol: the central turbine wheel shaft is checked with dial indicators to ensure zero excess radial or axial clearance, the compressor housing is verified completely free of metal-to-metal blade scraping marks, the oil ports are checked for clean passage, and the electronic variable-vane actuator is tested to guarantee flawless mechanical movement without catching. Trust TP German Auto Spares for fully verified, workshop-inspected Volkswagen 4×4 drivetrains, engines, gearboxes, air suspension components, manifolds, and mechanical parts that keep your Touareg performing exactly like it did when it rolled off the showroom floor.

Technical Workshop Engine-Drop Installation & Critical Oil Priming Warning: This premium forced-induction product is supplied as a complete functional standalone factory turbocharger assembly core including its dedicated electronic actuator module (exhaust manifold gaskets, high-tensile copper nuts, and oil feed lines are available separately or are fully transferable). Replacing a turbocharger on the 7L 5.0 V10 TDI is a massive, high-level technical undertaking; due to the tightly packed layout of the engine bay, replacing either turbocharger requires dropping the complete engine and gearbox assembly out from underneath the vehicle on a specialized mechanical table. Most importantly, your technician MUST replace the turbo oil supply and return lines with fresh units to prevent old oil coke flakes from clogging the replacement unit. Before the first engine start, the new turbocharger MUST be pre-primed by manual injection of fresh, clean engine oil directly into its oil inlet port, and the engine cranked over with the fuel delivery disabled to build oil pressure. Starting a dry turbocharger will cause immediate bearing destruction within three seconds, completely voiding its serviceability.
