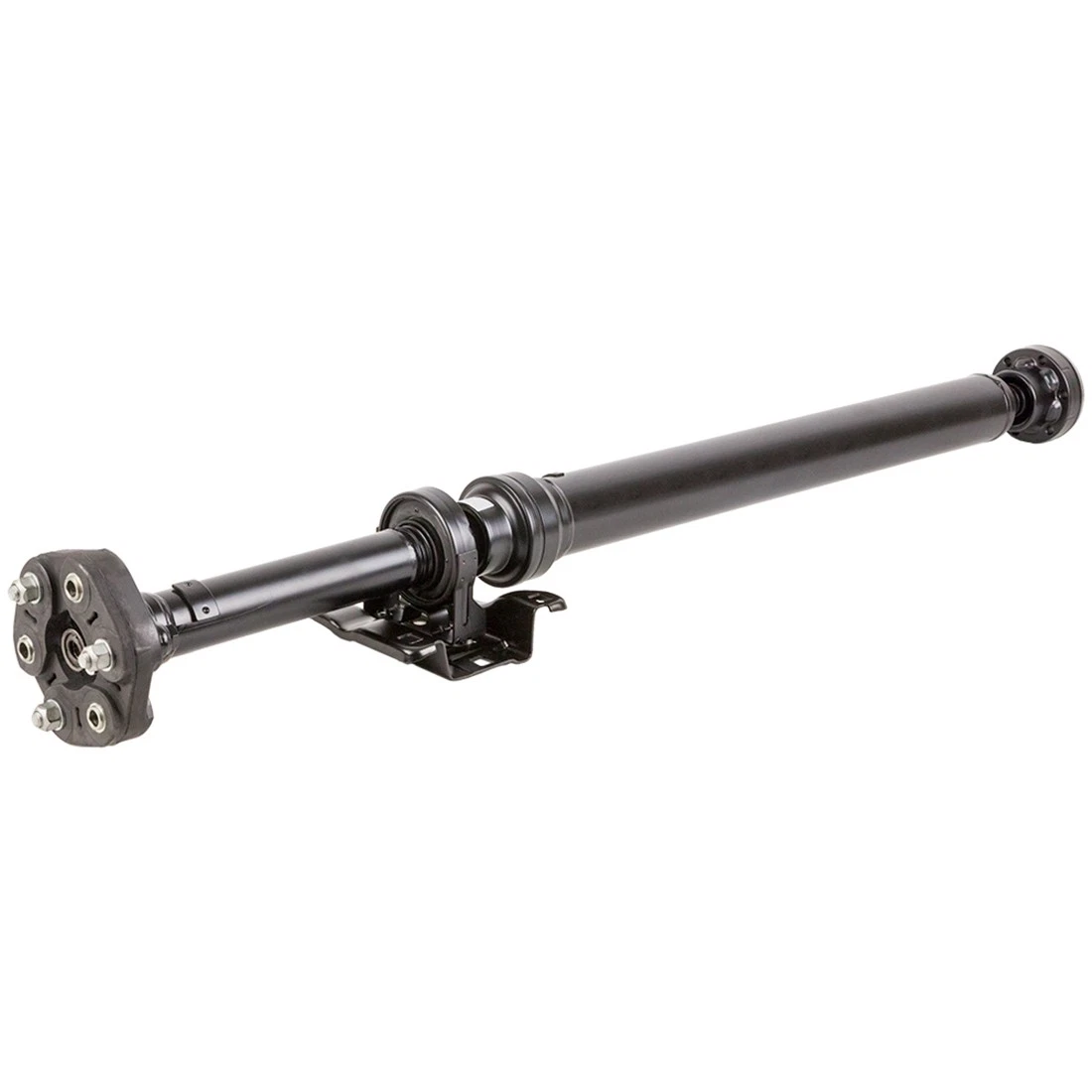

VW Touareg 7L Rear Driveshaft Propshaft | 2004 – 2010 OEM Cardan Shaft Spares

Description

Restore smooth, high-speed rotational balancing, eliminate severe cabin floor vibrations, and protect your 4WD drivetrain transfer case with this premium original VW Touareg 7L Complete Rear Longitudinal Driveshaft (Propshaft / Cardan Shaft). Hand-selected directly from low-mileage, insurance-approved donor vehicles and meticulously spin-tested to confirm perfect straightness with zero tube distortion, this genuine factory original dual-section longitudinal shaft serves as the definitive mechanical solution for first-generation pre-facelift and facelift 7L models built between 2004 and 2010. It is ideal for vehicle owners or workshop technicians replacing shafts suffering from completely torn center support rubber mounts, worn CV joints, or high-speed clunking.

Please note a critical drivetrain architecture and model variation detail regarding the first-generation Touareg longitudinal shaft setup: Volkswagen utilized distinct total shaft lengths and flange dimensions depending strictly on your vehicle’s specific engine block and transmission combination.

• Engine & Gearbox Specific Layouts: The physical length of the rear propshaft varies between the massive 5.0 V10 TDI, the high-torque 3.0 V6 TDI, the 2.5 R5 TDI, and the petrol 3.2 V6 / 3.6 FSI / 4.2 V8 models to accommodate variations in transfer case positioning.

• Complete Balanced Assembly: Sourcing this genuine workshop-vetted original component ensures you receive a factory-balanced structural tube complete with its original front and rear high-velocity CV joint flanges and central universal spider joint tracking correctly.

Sourcing this genuine workshop-inspected original Volkswagen component guarantees that the bolt-hole pitch layouts on both the transfer case companion flange and the rear differential nose interface with absolute factory precision right out of the box.

Running down the center tunnel of your luxury SUV leaves the rear longitudinal driveshaft under immense continuous torsional strain, transferring engine torque directly to the rear axle. On the Touareg 7L platform, the most notorious engineering wear point is the center support bearing assembly. The actual steel roller bearing is encased in a flexible rubber insulation ring mounted to the underbody. Over years of hard highway acceleration, off-road tracking, and severe exhaust heat cycles, this protective rubber ring dries out, rots, and eventually tears completely away from its bracket casing.

Once the center support rubber fails entirely, the heavy two-piece steel shaft loses its central anchoring point, allowing it to flail wildly inside the center tunnel under acceleration. The breakdown presents itself through unmistakable, severe mechanical symptoms: a violent thumping or knocking sound beneath the center console armrest when pulling away from a dead stop, a harsh high-frequency chassis shudder that peaks between 40 km/h and 80 km/h, or a metallic clicking sound when shifting from Drive to Reverse. Ignoring a flailing propshaft is highly dangerous; the severe imbalances will rapidly destroy the output shaft seals on your expensive 4X4 transfer case and pit the nose bearings of your rear differential. Choosing cheap, non-balanced generic aftermarket propshaft assemblies frequently results in immediate disappointment—they lack precise metallurgical balance weights, introducing an annoying, permanent low-frequency drone at highway speeds. Swapping out a failed shaft with our workshop-vetted factory original guarantees smooth torque transitions, quiet cabin acoustics, and absolute drivetrain alignment.

Every single Volkswagen Touareg 7L propshaft we salvage undergoes a strict physical and mechanical quality-control protocol: the central tube is checked on rolling jigs using dial indicators to verify zero bending, both end CV joints are checked for fluid grease retention and zero back-lash play, and the center support bearing rubber is thoroughly inspected. Trust TP German Auto Spares for fully verified, workshop-cleared Volkswagen drivetrain parts, front CV side shafts, differential assemblies, transfer cases, gearboxes, and mechanical components that maintain the premium safety parameters, pulling performance, and long-term asset value of your Touareg.

Technical Workshop Under-Body Installation, Alignment & Torque-to-Yield Bolt Warning: This premium mechanical drivetrain product is supplied as a complete factory original two-piece longitudinal propshaft assembly featuring integrated end CV joints and central support framework (the circular flexible rubber flex discs/Guibo joints and underlying chassis brackets are available separately or are fully transferable from your vehicle). Replacing a propshaft requires professional workshop lifting standards and tools; your technician must meticulously mark the indexing alignment of the new shaft flanges against the transmission and differential faces before final bolt-down to maintain the vehicle’s rotational balance profile. Most importantly, the high-tensile multi-point mounting bolts are factory stretch fasteners; they must be tightened strictly to official Volkswagen Newton-meter ($Nm$) specifications using a calibrated torque wrench. Finally, ensure that the central support bearing bracket is aligned perfectly parallel within its chassis slots before locking down the hardware to avoid introducing lateral stress across the new rubber isolation ring.

Key Features:

• 7L Chassis Specific Balancing: Designed and factory-weighted exclusively to handle high-torque output across all 2004–2010 Touareg permanent four-wheel-drive systems.

• Heavy-Gauge Seamless Structural Steel Tubing: Built with immense structural wall thickness to resist twisting or fatigue cracking under heavy vehicle towing loads.

• Pristine High-Velocity End CV Joints: Both the front and rear mounting joints feature tight, un-split boots packed with specialized lithium-molybdenum grease.

• Workshop Vetted Center Support Core: The internal central support roller bearing is confirmed smooth with zero noise, tracking within a healthy rubber isolation core.

• Condition: Premium low-mileage used original factory mechanical component; thoroughly washed, balance-verified, and completely ready for bolt-in drivetrain safety restoration.
